Plastic Sheet Production Line
PVC Wall Panel Production Line
Automated, High-Efficiency Manufacturing for Durable & Aesthetic PVC Wall Panels
Key Highlights:
Fully Automated: PLC-controlled extrusion, calibration, printing, cutting.
Versatile Designs: Wood, marble, 3D textures via digital embossing.
Eco-Friendly: Energy-saving motors, VOC-free coatings, waste recycling.
High Output: 800–1,500 kg/h | Panel Width: 300–1220mm | Thickness: 5–15mm.
Features:
Twin-screw extruder with ±0.15mm precision.
Instant UV coating for scratch/waterproof surfaces.
AI-driven defect detection (<0.1% error rate).
Inquire Now
Add to Inquiry Basket
Product yield and specifications
Width: 400, 600mm
Thickness: 8-9mm
Theoretical speed: 0.3-1.5m/min
Theoretical yield: 180-240kg/h
The yield and the width and thickness of the product affect the speed of production
PVC bamboo and wood fiber wallboard production line list:

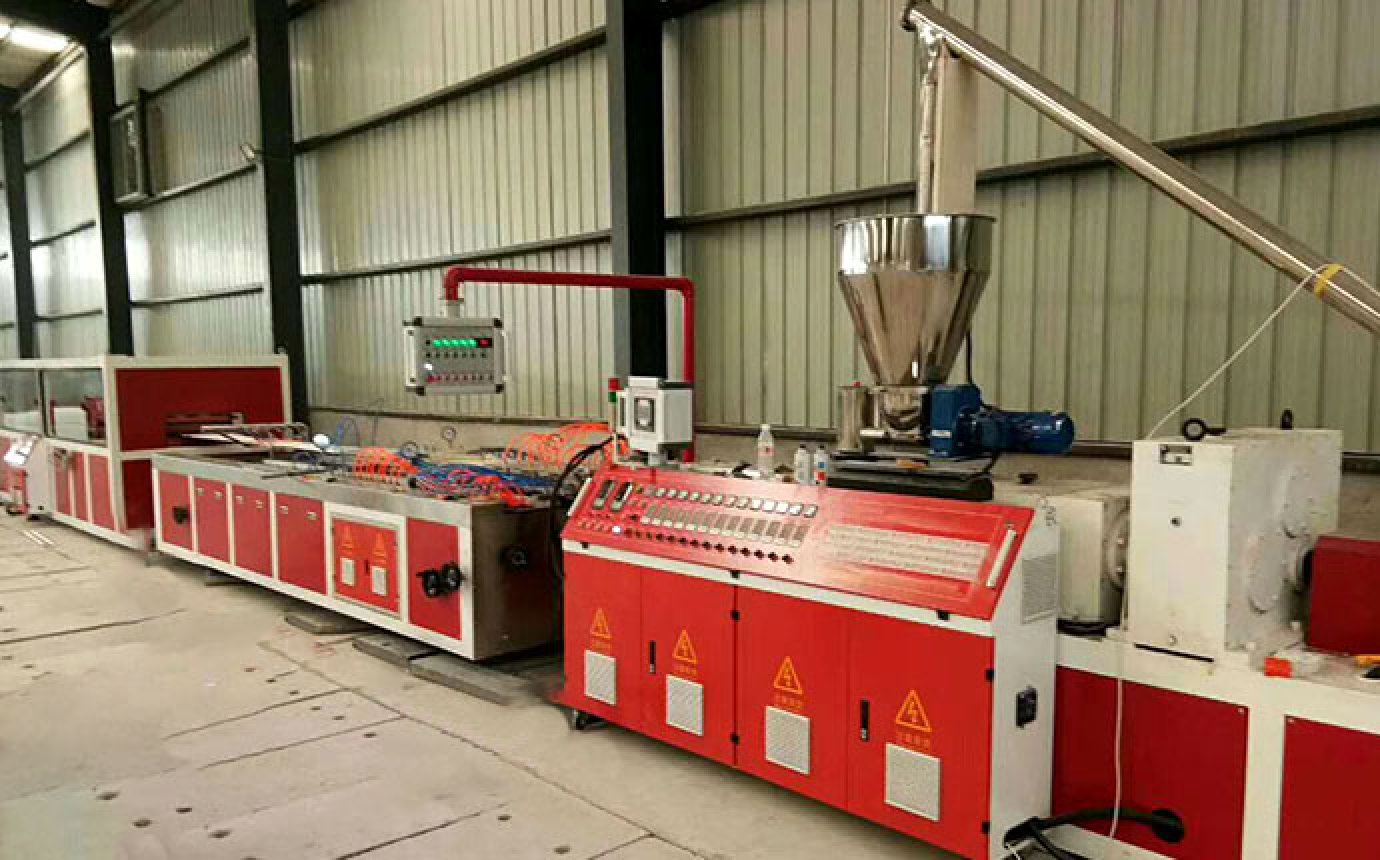

Extruder section | ||||
Number | Model | unit | quantity | Marks |
1 | Stainless steel hopper + screw feeder | set | 1 | |
2 | SJSZ65/132 double screw extruder | set | 1 | vacuum exhaust |

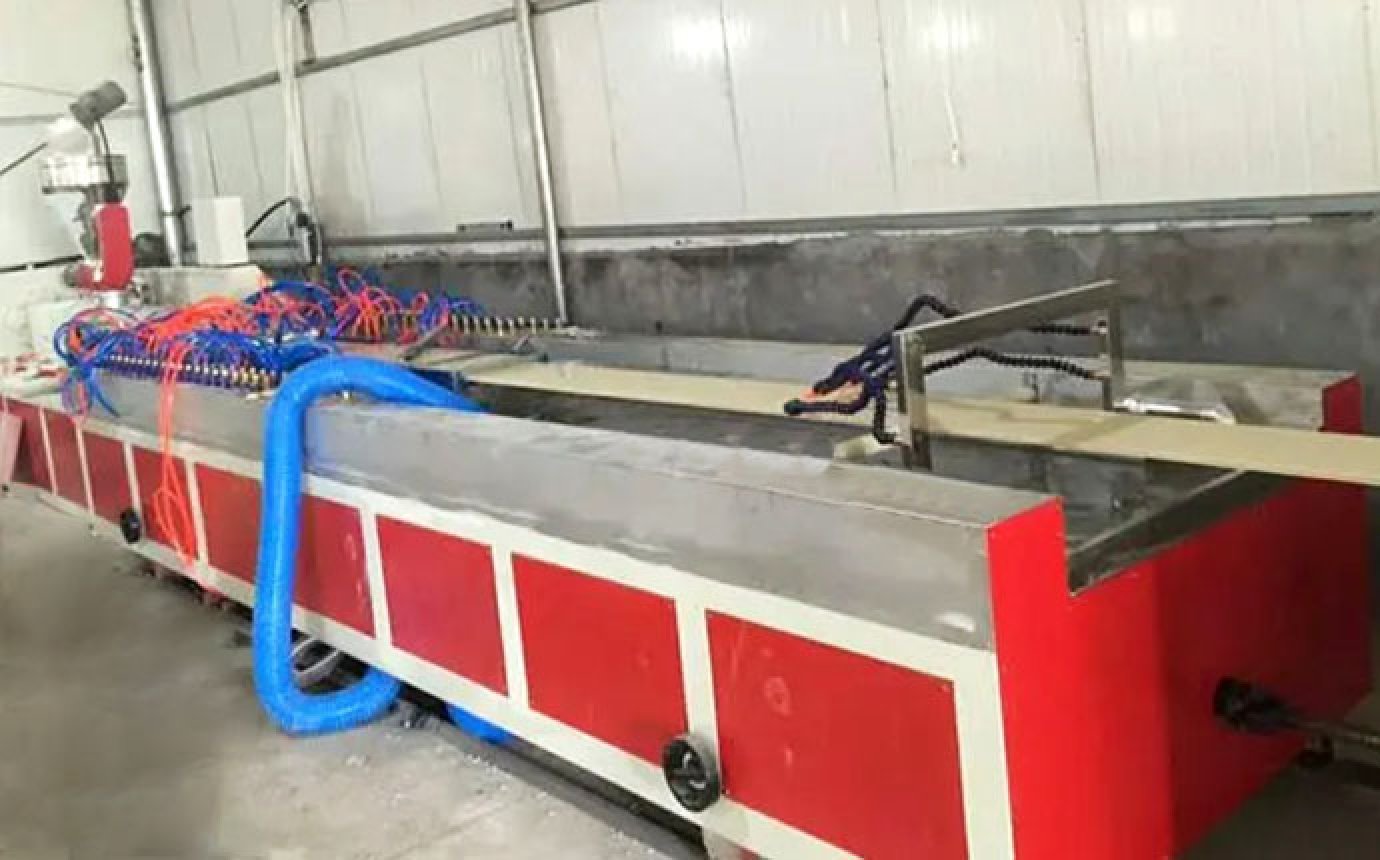

3 | ZDX-600Vacuum setting platform | set | 1 | Countertop stainless steel type |
4 | ZQY-600 tractor | set | 1 | Overall lifting standard type |

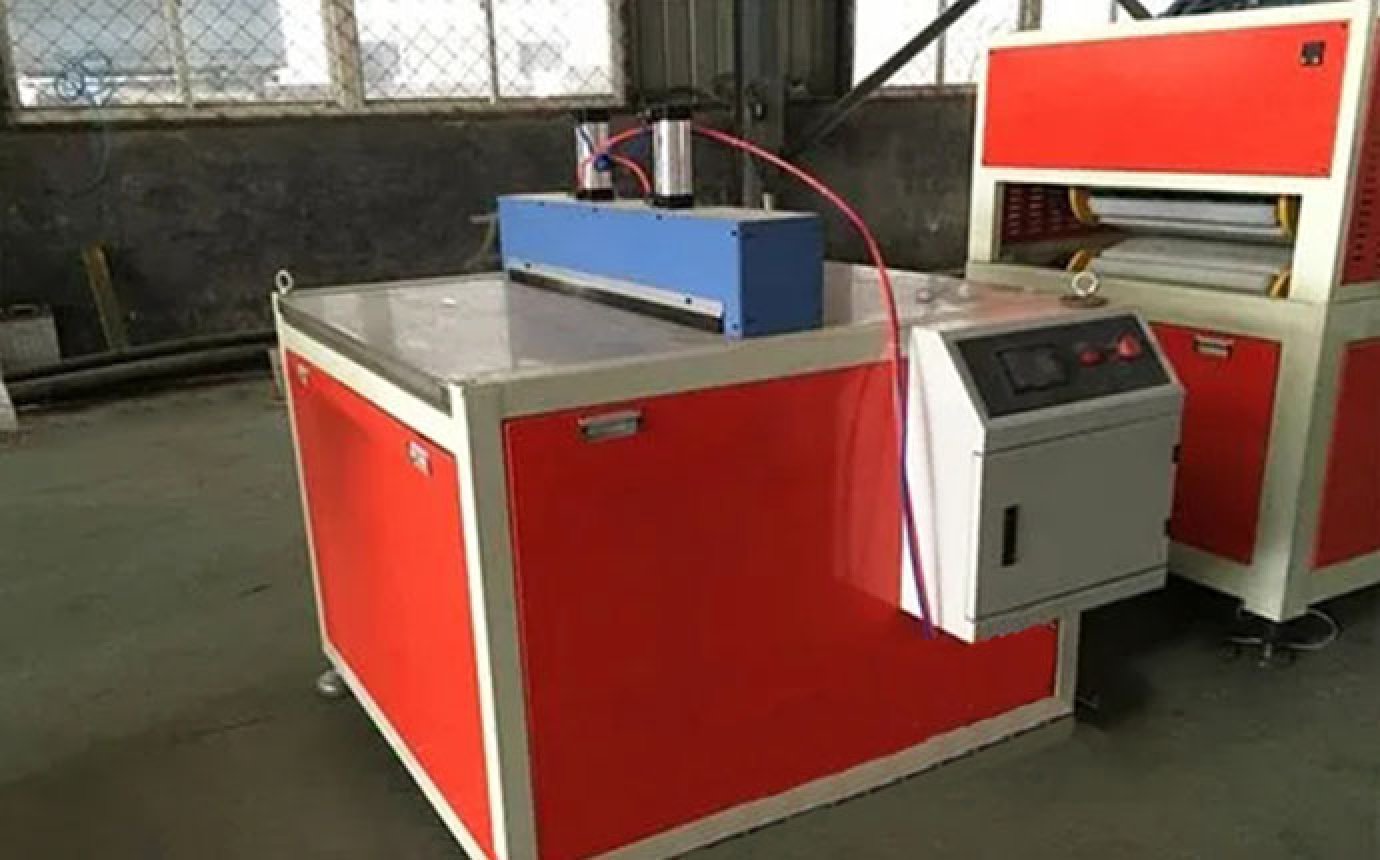

5 | HS-600 cutter | set | 1 | Dusting device |
6 | ZDS-600Blanking system | set | 1 |
|
7 | HS-600mechanical arm | ser | 1 | osculum type |
8 | electrical apparatus control system | unit | 1 | Siemens contactor |
| ||||
Auxiliary equipment
Number | Model | unit | quantity | Remark | |
1 | SHR-L300/600mixing | set | 1 | Automatic screw feeding | |
2 | SWP-360 crusher | set | 1 |
| |
3 | HS-600Cold laminating machine | set | 1 | adjustable | |
4 | HS-1320dividing and cutting machine | set | 1 | Pneumatic shaft type |
Mould size
Number | Model | Unit | quantity |
| |
1 | 400wall panel mould | set | 1 |
| |
2 | 600wall panel mould | set | 1 |
| |
| |||||
