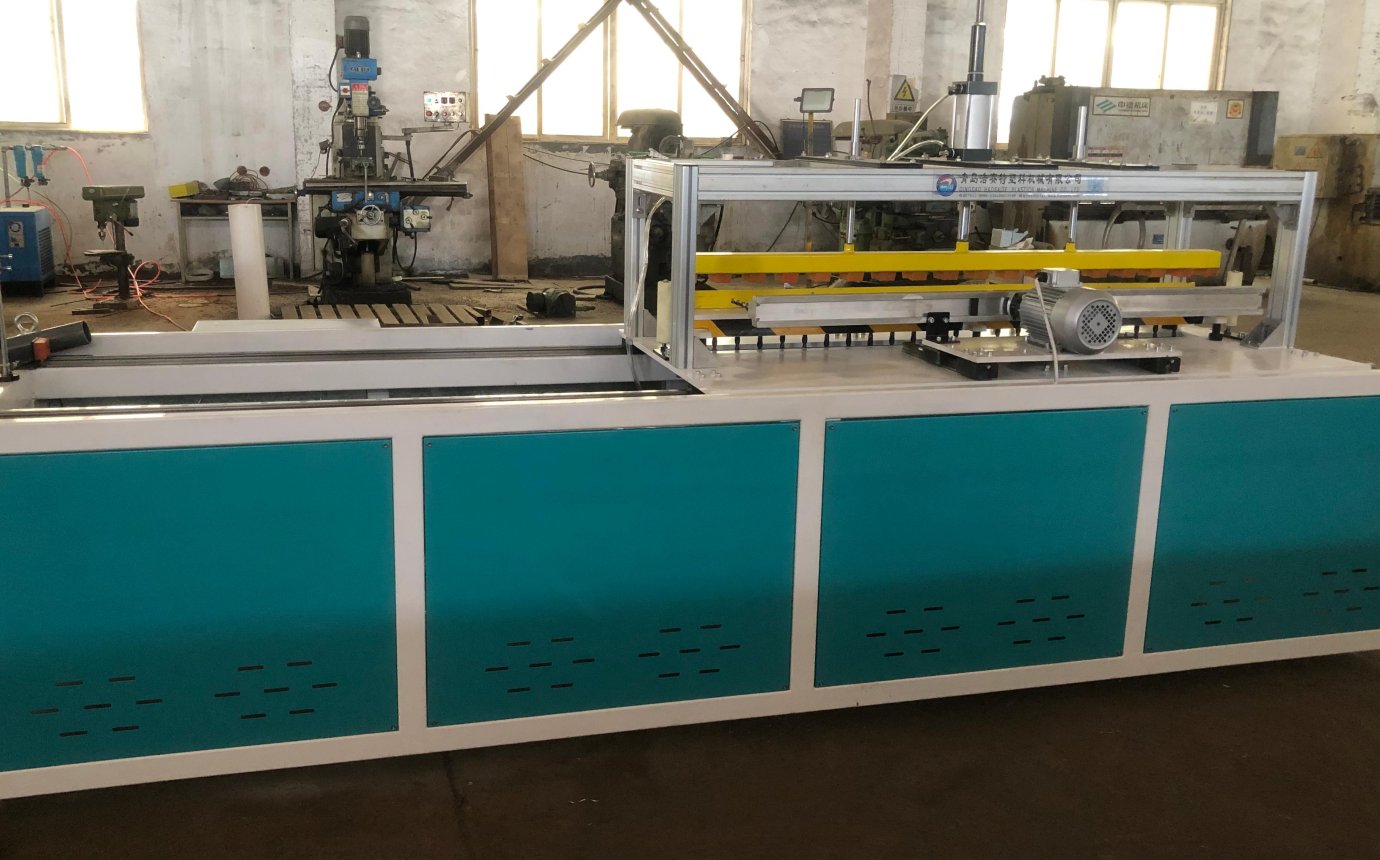

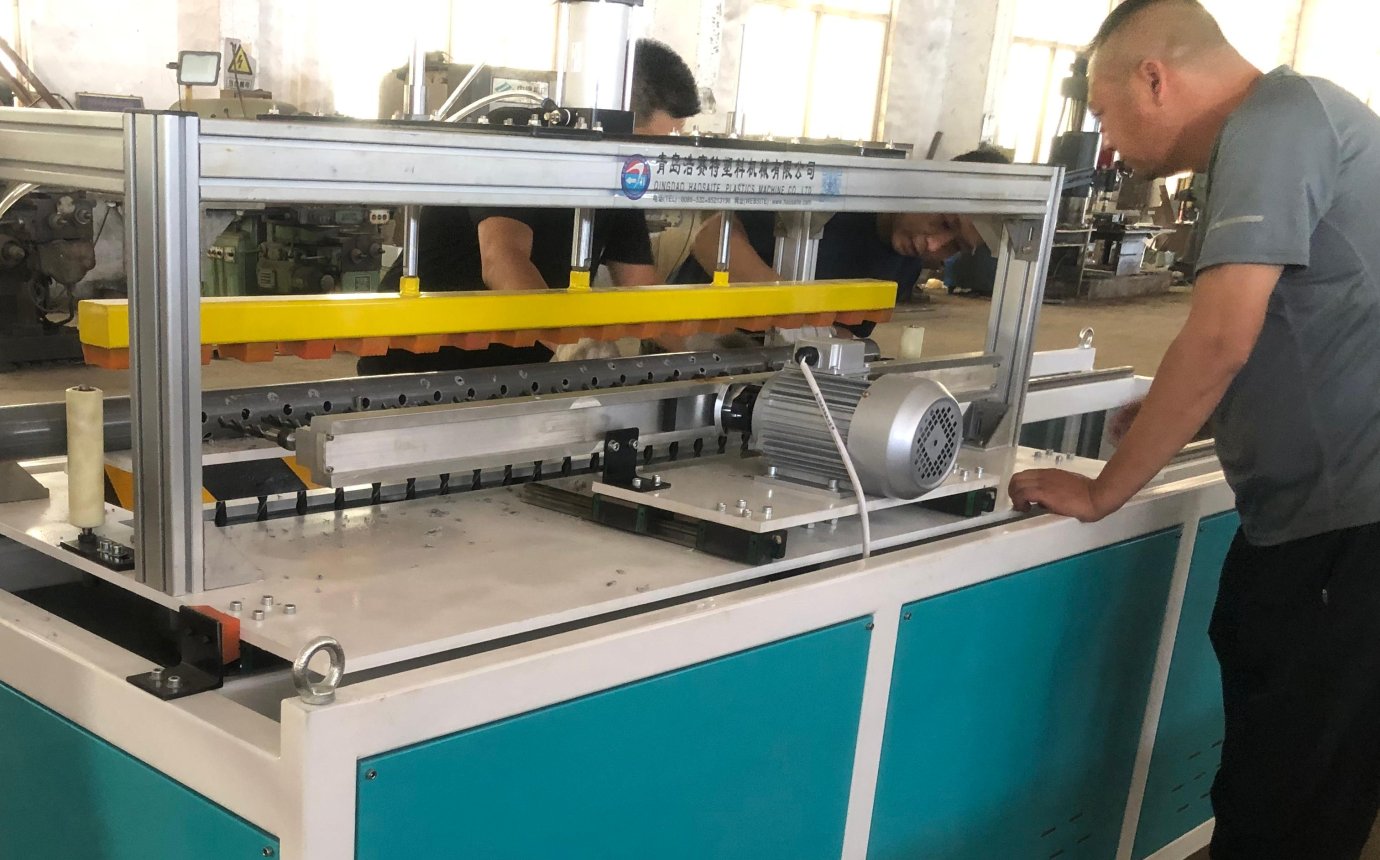

Our Fully Automatic Pipe Drilling Machine revolutionizes industrial pipe processing. This CNC-controlled system autonomously handles pipe loading, precise positioning, multi-angle hole drilling, and unloading without manual intervention. Engineered for high-volume production, it delivers unmatched speed, accuracy (±0.1mm), and repeatability on steel, stainless steel, PVC, and other tubular materials.
Inquire Now
Add to Inquiry Basket
Fully Automatic CNC Pipe Drilling Machine | High-Speed Precision Drilling for Industrial Pipes & Tubes
Product Overview:
Maximize productivity with our state-of-the-art Fully Automatic Pipe Drilling Machine, engineered for precision, speed, and unmanned operation. Ideal for high-volume pipe fabrication in oil/gas, construction, automotive, and HVAC industries, this CNC-driven system eliminates manual labor, reduces errors, and cuts operational costs by up to 40%.
Key Technical Specifications:
| Parameter | Specification |
|---|---|
| Drilling Capacity | Pipes: Ø20mm–Ø300mm • Wall Thickness: 1–25mm |
| Drilling Speed | 60–120 holes/min (diameter-dependent) |
| Positioning Accuracy | ±0.05mm (laser-guided) |
| Spindle Power | 5.5–15 kW (high-frequency, air-cooled) |
| Control System | CNC with 6-axis servo control • Siemens/Beckhoff |
| HMI Interface | 15" touchscreen • CAD/CAM compatibility |
| Automation | Auto-loading/unloading • Robotic clamp & eject |
| Material Compatibility | PEPVC, HDPE |
Core Features & Advantages:
✅ Unmatched Automation
Robotic arm integration for continuous feeding, alignment, drilling, and ejection.
24/7 unmanned operation with automatic tool compensation.
✅ Precision Engineering
Linear guideways + servo motors for micron-level repeatability.
Laser measurement ensures hole patterns match CAD designs (±0.1mm tolerance).
✅ Multi-Angle Flexibility
Drill holes at 0–360° (axial/radial) with automatic rotation.
Program complex patterns: linear, spiral, staggered via preloaded templates.
✅ Durability & Ease
Tungsten-coated drill bits (included) for 10x lifespan vs. standard.
Quick-change tool holders • Auto-lubrication system • Error diagnostics.
Why Choose Our Machine?
300% ROI: Produce 500+ pipes/shift vs. 50 manually.
Zero Setup Waste: AI-optimized nesting minimizes material loss.
Global Support: CE, ISO certification • 24-month warranty • On-site training.
Target Industries & Applications:
Oil & Gas: Flange holes in pipelines, risers, well casings.
Construction: Structural steel columns, scaffolding, trusses.
HVAC/Plumbing: Ducting, drainage systems, heat exchangers.
Automotive: Exhaust systems, chassis, hydraulic tubing.
